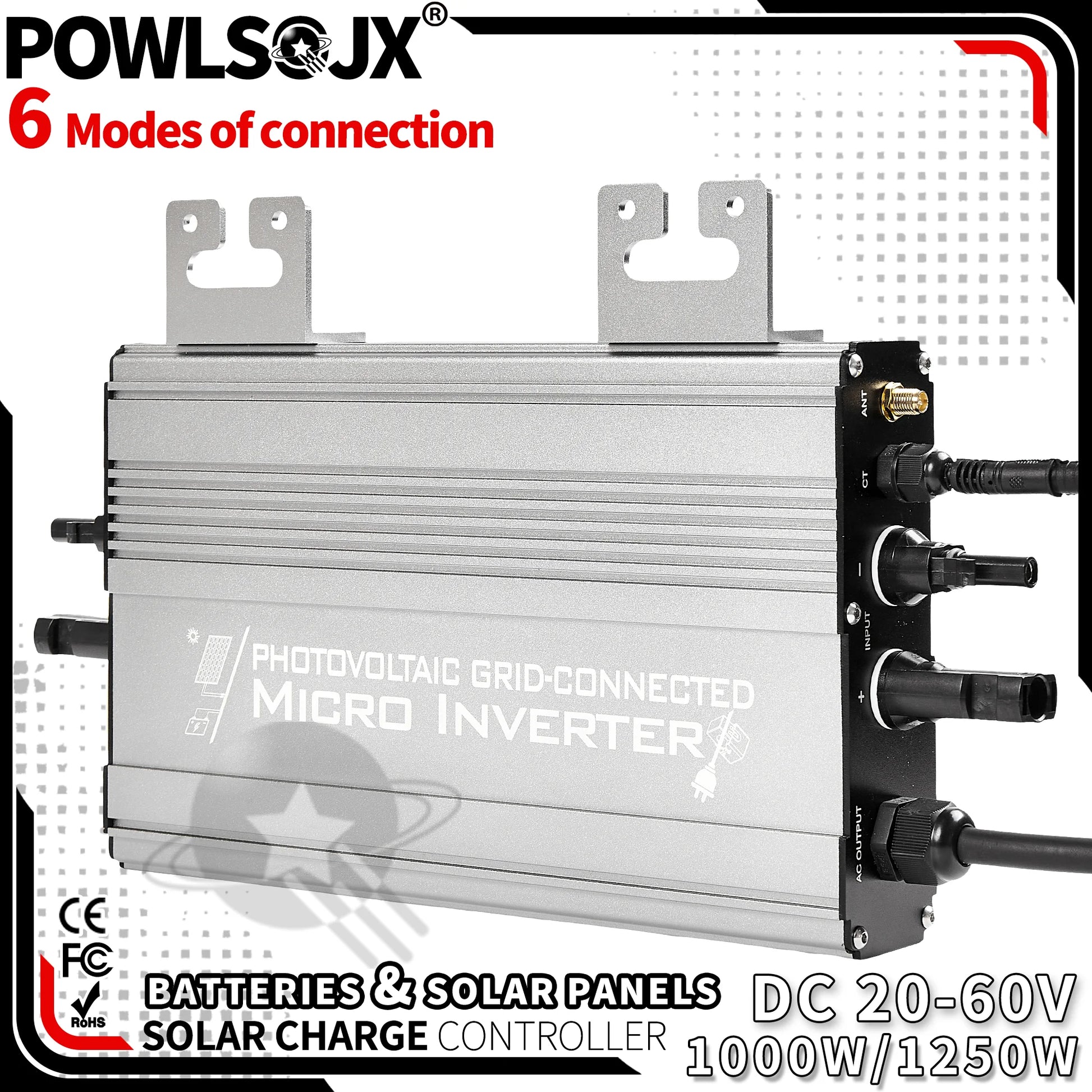

Dual Input Solar Grid Connected Inverter

PRODUCT SPECIFICATIONS

• Product Name: Dual Input Solar Grid Connected Inverter (1000W / 1250W)
• Item Type: Grid-Connected Solar & Battery Inverter / Smart Microinverter
• EU LVD Voltage Rating: Low voltage (Below 50Vac or 75Vdc)
• Smart Device Capability: Yes (Built-in 2.4G WiFi for smart mobile app monitoring and control)
• Input Compatibility: Dual Input supporting both PV panels (Voc < 60VDC, 20–60VDC input voltage range) and 36V/48V batteries simultaneously
• Power Ratings: 1000W / 1250W (AC output in PV mode); 720W (AC output in Battery mode)
• AC Output: 180–265VAC (Compatible with 208/220/240VAC), 50/60Hz frequency, THD < 5%, Power factor > 0.99

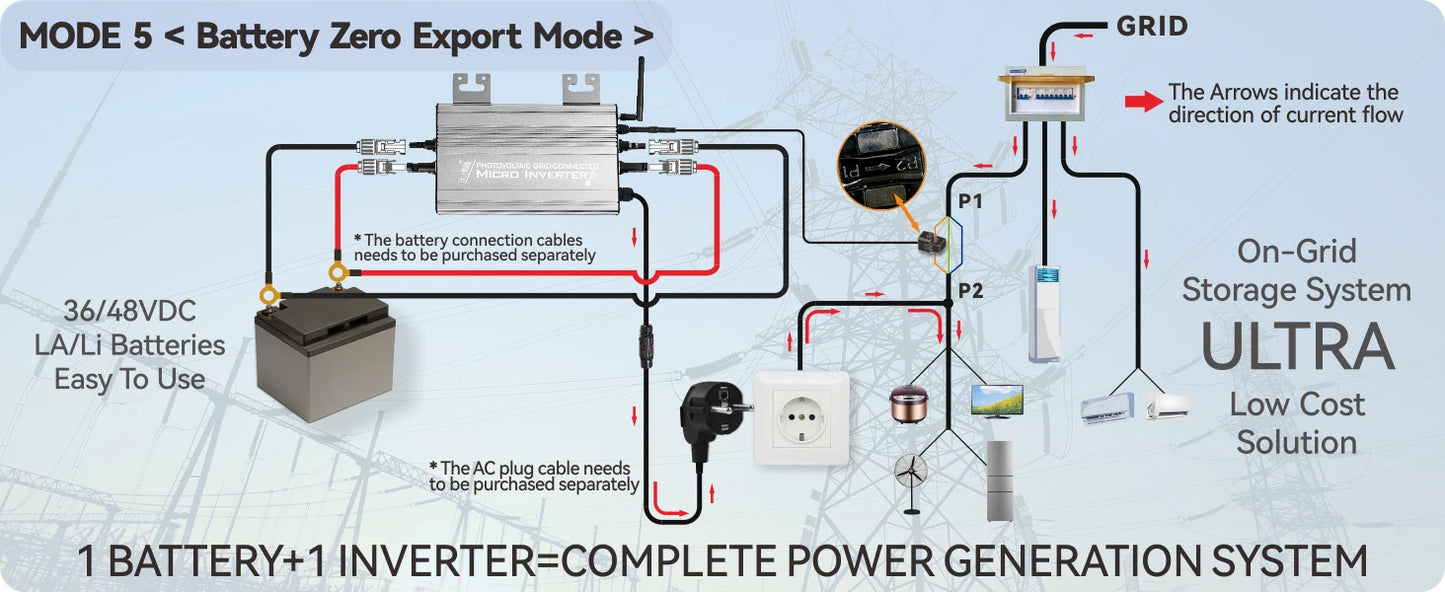

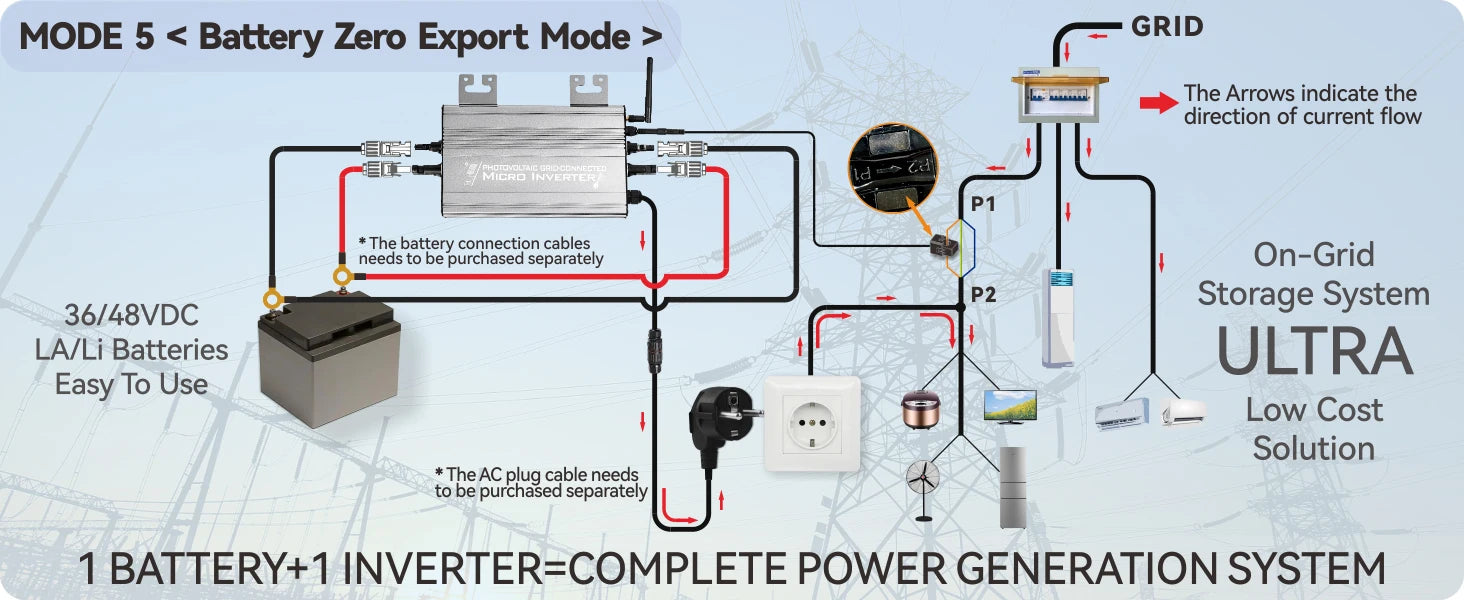

• Flexible Working Modes: 6 Modes available across Storage Mode, PV Mode, and Battery Mode (each with On-Grid or Zero Export functionality)
• Efficiency: CEC weighted average efficiency ≈ 93%, with 99% accurate MPPT tracking
• Protection & Safety: Over/under voltage, frequency mismatch, anti-islanding, overcurrent, overheat, and overload protections
• Design & Build: All-aluminum alloy case for superior heat dissipation and durability with an IP65 waterproof rating
• Connectors: Standard MC4 DC connectors and IP68 waterproof AC quick connectors
• Physical Dimensions & Weight: 240 x 188.5 x 43 mm (excluding connectors/cables) / Weight: 1.85 kg
• Product Highlights: This smart dual-input solar grid-connected inverter supports simultaneous PV panel and battery input with 6 flexible working modes and remote WiFi monitoring. Housed in a durable IP65 waterproof all-aluminum alloy chassis, it delivers high efficiency and robust multi-protection safety for reliable residential renewable energy setups.
